Open platform truck transport: steel pipes & construction cargo

Professional open platform truck transport plays an indispensable role in heavy construction logistics, infrastructure development, and industrial equipment distribution across Azerbaijan. Unlike enclosed curtainside trailers, an open deck articulated flatbed semi-trailer provides completely unrestricted 360-degree crane access from the top and sides. This operational freedom makes flatbeds the preferred choice for transporting long-length steel pipes, structural rebar, precast concrete panels, bridge girders, and oversized fabricated modules. As massive civil engineering projects expand across Baku, the Absheron industrial corridor, and the liberated territories of Karabakh, reliable heavy-duty road haulage becomes a critical determinant of project timelines. Selecting specialized transport equipment and certified cargo securing mechanisms guarantees seamless, safe transit from factory gates to job sites.

Technical specifications and structural advantages of flatbed trailers

Standard dimensions and payload ratings

Open platform trailers are built on reinforced steel chassis engineered to withstand intense structural stresses. The standard usable deck measures 13.6 meters in length and 2.48 to 2.55 meters in width, with a typical deck ride height of 1.3 to 1.5 meters above the road surface. Equipped with three or four heavy-duty axles on pneumatic suspension, these commercial units deliver a payload capacity ranging between 22 and 26 metric tons. The completely flat, unobstructed platform easily accommodates bulky cargo that cannot be loaded through standard trailer rear doors.

Floor deck construction and load-securing anchor points

The trailer deck is typically surfaced with heavy-duty textured birch plywood or corrugated steel plates with high friction ratings. Integrated along the chassis outer frame rails are certified lashing rings spaced every 1 to 1.5 meters. These anchor points deliver tension ratings of 2,000 to 5,000 daN, enabling rigorous chain and strap immobilization of heavy structural steel during cross-country transport.

Unrestricted 360-degree overhead and lateral crane loading

Without fixed side pillars, curtain tracks, or roof assemblies, crane crews and heavy forklift operators can load long components without obstructions. Overhead gantry cranes at manufacturing plants can place multi-ton steel sections directly onto the center of the trailer bed. This direct handling cuts warehouse turnaround times substantially and eliminates the risk of vehicle body collisions.

Open platform truck transport for pipes, rebar, and precast concrete

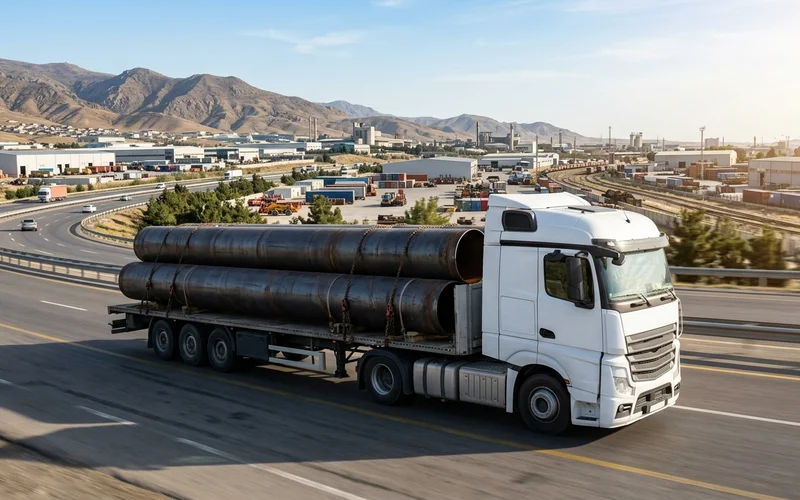

Transporting large diameter steel and utility pipes

Large diameter pipeline systems for energy and water infrastructure require specialized stowage solutions. Pipes are loaded onto open decks using specialized steel stanchions (stakes) and curved timber cradles that support each tier securely. Certified load-securing chains and heavy ratchet tie-down straps prevent radial displacement and pipe rolling during cornering and highway transit.

Heavy rebar bundles and structural steel shapes

Reinforcing steel bar (rebar) bundled in 12-meter lengths represents high-density cargo requiring meticulous weight distribution to maintain legal axle limits. Anti-slip rubber friction mats are deployed underneath the bundles to enhance grip, while corner protectors safeguard synthetic lashing straps from abrasive contact with steel edges during harsh deceleration.

Precast concrete beams and modular foundation blocks

Concrete wall panels, bridge beams, and precast utility rings combine substantial weight with inherent brittleness under shock loads. Securing these components requires heavy-duty grade 80 or grade 100 steel chains and heavy-duty load binders to prevent any shifting that could destabilize the vehicle combination.

Cargo securing protocols and highway safety standards

Lashing straps, steel chains, and pipe stanchions

Road transport safety regulations demand certified, heavy-duty cargo restraints tailored to the physical characteristics of construction freight:

• Ratchet tie-down straps: High-tensile 50 mm polyester webbing rated for working loads up to 5,000 daN for compressive top-over lashing.
• High-grade steel chains and load binders: Heat-treated grade 8 and grade 10 alloy chains for restraining rigid structural steel and machinery.
• Removable stanchions and side posts: Vertical steel stakes inserted into chassis pockets to contain pipes, timber, and cylindrical materials.
• Anti-slip friction mats: High-density composite rubber pads placed under loads to dramatically increase friction coefficients.
• Edge protection brackets: Molded polymer angle protectors that distribute strap pressure and shield straps from shearing.

Axle weight regulations and AYNA road compliance

Azerbaijan’s Land Transport Agency (AYNA) and traffic police enforce stringent gross vehicle weight (40 to 44 tons) and individual axle weight limits. Properly engineered open platform truck transport ensures optimal center-of-gravity alignment across tractor drive axles and trailer bogie sets, avoiding road pavement wear and ensuring smooth clearance through automated highway weigh stations.

Key transport corridors: Baku, Sumgayit, and Karabakh construction sites

Industrial logistics from Sumgayit Technology Park (STP)

As the primary hub for metallurgical and pipe manufacturing in the region, Sumgayit dispatches daily convoys of structural steel and pipe shipments. Utilizing the modern M1 motorway, trucks deliver vital industrial supplies to development zones around the capital.

Karabakh and East Zangezur reconstruction corridor

Extensive civil engineering initiatives in Agdam, Fuzuli, Shusha, Jabrayil, and Kalbajar rely heavily on open platform truck transport. Long-haul truck combinations traverse mountainous corridors along the M2 and M4 routes, providing essential precast components, utility pipes, and steel frameworks for bridges, tunnels, and highways.

Alat Free Economic Zone and multimodal links

Connecting with the Baku International Sea Trade Port in Alat, flatbed trucks provide smooth transshipment of transit pipe shipments arriving via Caspian maritime routes and international rail corridors.

Cost determinants in open platform freight shipping

Factors influencing flatbed haulage rates

Flatbed freight logistics does not adhere to generic flat rates because every industrial shipment entails distinct operational considerations. Haulage fees are estimated based on key parameters:

• Total transport distance and terrain conditions across regional delivery routes.
• Net shipment weight, dimensional profile, and any special permits needed for out-of-gauge elements.
• Specialized equipment requirements, such as pipe stanchions, cradles, or chain binders.
• Loading and unloading dwell times at remote or congested industrial sites.

Logistics professionals provide tailored freight calculations to help contractors optimize operational expenditure.

Frequently Asked Questions (FAQ)

How are large pipes kept stable during open platform truck transport?

Trailers are equipped with certified vertical steel stanchions and contoured wooden supports. Steel chains with ratchet binders lock the pipe bundle firmly against the deck to prevent lateral roll.

Can construction materials be transported on open decks in rainy conditions?

Materials that are weather-tolerant, such as rebar, industrial pipes, and precast concrete, travel without cover. For moisture-sensitive goods, heavy-duty waterproof tarpaulins can be secured over the cargo.

Is real-time shipment monitoring available for flatbed freight?

Yes, all heavy trucks in the network feature integrated satellite GPS tracking, giving dispatchers and customers real-time visibility into vehicle position and delivery transit times.
